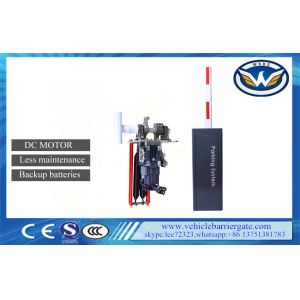

Automatic Boom Barrier Parking Boom Gates DC 24V Adjustable Speed
This is 2nd generation brushless barrier gate from WON SUN. This product adopts the latest mold design technology, mold die-casting manufacturing technology, brushless control speed technology, and can be quickly interchanged, with no clutch design, more reliable quality, and more convenient use. The movement adopts two-stage worm gear transmission and curved crank arm three-link structure, and the landing rod is fast and stable. Easy maintenance and long service life.
| Anti-collision protects boom arm Once the anti-collision mechanism installed, it will protect the boom arm not to be damaged
once boom arm was collided by a vehicle Anti-hit by pressure resistance bounce While moving down, boom arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by the boom arm. The sensitivity is adjustable Anti-hit by Loop Detector(Optional) The suppose1# loop detector is connected to the barrier gate. While barrier boom moving down,
If a coming vehicle was detected to be existing on the ground induction coil (to be connected
to1# loop detector), the barrier boom will go back to the vertical position immediately until the loop
input was dismissed and then the barrier boom will go down immediately |
Technical parameters
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage: DC24V
3 Running speed:1.5s-8s
4 Rated current: 8.58A
5 Rated power: 140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power: 56.8N.m
9 Relative humidity: ≤90%
10 Remote control distance: ≤100M( in the open place)
11 IP Degree:IP44
42 Max length of arm: 6M
| Model | Boom Shape | Max Boom Length | Speed |
| WST1191 | Straight boom | 6m | 6 seconds |
| WST1192 | Straight boom | 4.5m | 3 seconds |
| WST11921 | 90 degree, Articulated boom | 5m | 6 seconds |
| WST11922 | 90 degree, Articulated boom | 3m | 3 seconds |
| WST11961 | 180 degree, Articulated boom | 5m | 6 seconds |
| WST11962 | 180 degree, Articulated boom | 3m | 3 seconds |
Product Maintenance
- Keep the barrier gate clean
- Check the joints ever month in case of any loose parts.
- Check the spring elasticity after the barrier gate running 3000 times.
- Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
- Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.
