Stainless Steel Automated Car Parking System , Access Control Traffic Barrier Gate
1. Basic Features:
1. AC motor is more powerful and no maintenance.
2. Barrier Beam/arm can be chosen from 3 meters to 6 meters, and barrier gate
closing time is also arranged from 1.8 second to 6 seconds.
3. All the operation process is soft without any noise and shaking.
4. Infrared photocell interface, Loop detector interface and IC system
5. interface are reserved for the other functions.
6. Green light and red light are used inside for indication the position of the beam.
2. Barrier Gate Technical Specifications
| Running time | 1.8 sec | 3 sec | 6 sec | 3 sec | 6 sec | 3 sec | 6 sec | 3 sec | 6 sec |
| Boom type | Straight | 90°folding | 180°folding | 2 fence | 3 fence |
| Max boom length | 3.5m | 4.5m | 6m | 4m | 5m | 3.5m | 4.5m | 3.5m | 4m |
| Boom dimension (W×H) | 45x80mm | 45x100mm |
| Boom weight | 3.5kg | 4.5kg | 6kg | 4.5kg | 5.5kg | 4kg | 5kg | 6kg | 7.5kg |
| Voltage | 220V±10%, 110V±10% |
| Frequency | 50/60HZ |
| Motor voltage | 220V |
| Power | 120W |
| Working temperature | -40°C~+75°C |
| Protection grade | IP44 |
3. Each automatic boom barrier will include:
1 pcs Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs manual book
4. Optional Accessories:
1. Loop detector: single loop detector or dual channel loop detector
2. Photocell
3. Flash light
4. Boom rest/ arm holder

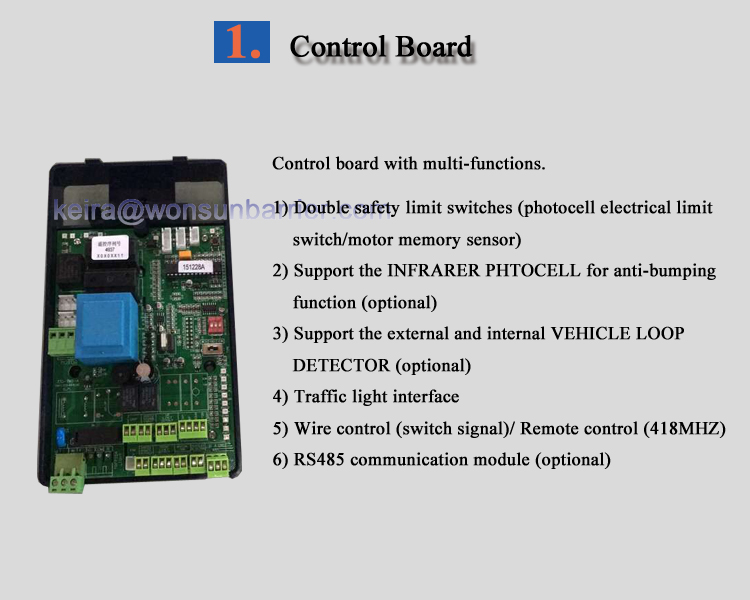

5. Control board
6. RS485 communication interface
5. Parking list:
| Items | quantity | items | quantity |
| Paint-coated case | 1 | motor | 1 |
| Transmission | 1 | limit switch | 1 |
| Barrier arm | 1 | capacitor | 1 |
| Spring | 1 | circuit board | 1 |
| Remote control device | 2 | console control device | 1 |
| Installation kit | 1 | | |
