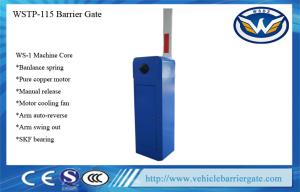

Manual release Car Park Barriers For Commercial Security Gates System
That is how we produce this good barrier:
1. 15 types of technical devices for testing,131 levels of precise equipment for maching
2. 400 pcs of accessories are carefully selected,189 processes of assembly
3. 5 steps of quality controls are not absent
Quik details:
1. OEM: YES
2. Color: yellow, orange, blue, customized optional
3. Run speed: 0.6s, 1s, 1.8s, 3s, 6s
4. Arm type: Straight arm, telescopic arm, fence arm, folding arm
WS-1 Mchine Core Technical Data:
1. Working temperature:-40℃~+75℃
2. Humidity:≤90%
3. Power supply: AC 220V/110V±10%, 50/60HZ
4. Rated power: 120W/100W
5. Motor rotational speed: 1400rpm
6. Protection degree: IP54
7. Remote distance: Around 100m
8. Max boom length: 6m
Specifications:
| Model |
WSTP-115 |
| Size |
320*280*935 mm |
| Material |
Galvanized plate or Cold roll plate, 2.0mm thickness sheet
3 years without rust, shedding and fading
|
| Spring And Bearing |
Heat Treatment: more durable, more than 5 million times through operation testing |
| Packing Size |
1030*380*450mm , with seven layers carton case
inside with air bubble film for protection
|
| Delivery |
By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested
|
Functions & Features
| 1. Manual release |
| 2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking |
| 3. Die-casting aluminum alloy motor, precision and good at thermal radiating |
| 4. Motor cooling fan, solving the problem of heat-protection |
| 5. Double safety limit switches (photoelectricity limit switch/motor memory sensor) |
| 6. Reversing on obstacle |
| 7. Auto-closing |
| 8. Support the INFRARER PHTOCELL for anti-bumping function (optional) |
| 9. Support the external and internal VEHICLE LOOP DETECTOR (optional) |
| 10. Traffic light interface |
| 11. Wire control (switch signal)/ Remote control (418MHZ) |
|
12. RS485 communication module (optional)
|
FAQ:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
