High Speed 100% Duty Cycle Toll Parking Lot Security Gates With Auto Reverse

  • 1
  • 2
  • 3

Brand Name : WONSUN

Model Number : DZ-138

Certification : CE, ISO, SGS

Place of Origin : China

MOQ : 1PC

Price : USD300~400per unit

Payment Terms : T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,

Supply Ability : 1000 Sets/Month

Delivery Time : 3-7 working days after received your payment

Packaging Details : Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Name : High Speed 100% Duty Cycle Toll Barrier Gate With Auto Reverse

Motor Rated Power : 50W,Max 100W

Voltage : AC90V~AC264V,DC24V

Size : 342*312*959mm

Speed : adjustable

Max length of arm : 6mts

Contact Now

High Speed 100% Duty Cycle Toll Barrier Gate With Auto Reverse

The barrier gate can be operating out in the wind, rain, snow, ice and sub-zero temps,Working temperature:-40℃ to 85℃,IP65.when the power is off,the barrier gate arm can be locked at both positions,when the power is on, the barrier gate will automated detect,reset and work normally.

Technical Data:

  • Max Boom Length and Diameter:6000mm, Ф75mm
  • Power Supply ​:24/100/240VAC,50/60Hz
  • Power Consumption: 50W Max 100W
  • Working Temperature:-45℃~+85℃
  • Machine Case Size(W*D*H):342*312*959mm
  • Open/Close Time:0.9sec to 6sec
  • Enclosure rating:IP54

Functions

1. Speed can be adjusted.

2. Barrier gate up &down signal relay switch output.

3. Barrier gate running state: OK signal output indicating that the gate is working properly.

5. R&G Traffic light relay switch signal output.

6. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.

7. Count mode interface.

8. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.

9. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle and the barrier gate.

10. Delay closed selection function.

11. High-sensitivity arm auto reverse function (intensity can be adjusted).

12. Parking system interface.

13.RS485 or RS232 network communication control up &down interface (no need to install communication module)

14. Anti-collision alarm signal interface.

15. Adjustable speed port (from 0.9s to 6 s)

16. High-strength precision cast steel, industry moving parts beyond the industry quality

Operation time and boom length

Boom Type(meter) Operation Time(seconds)
Fast speed boom≤2.5 0.6
Fast speed boom≤3 0.9
Common straight boom≤4.5 2.5
Common straight boom≤6 4.5
80*45mm 90°folding boom≤3 1
80*45mm 90°folding boom≤3.5 2.5
80*45mm 90°folding boom≤5 5
80*45mm 180°folding boom≤3 1
80*45mm 180°folding boom≤4 2.5
80*45mm 180°folding boom≤5 4.5

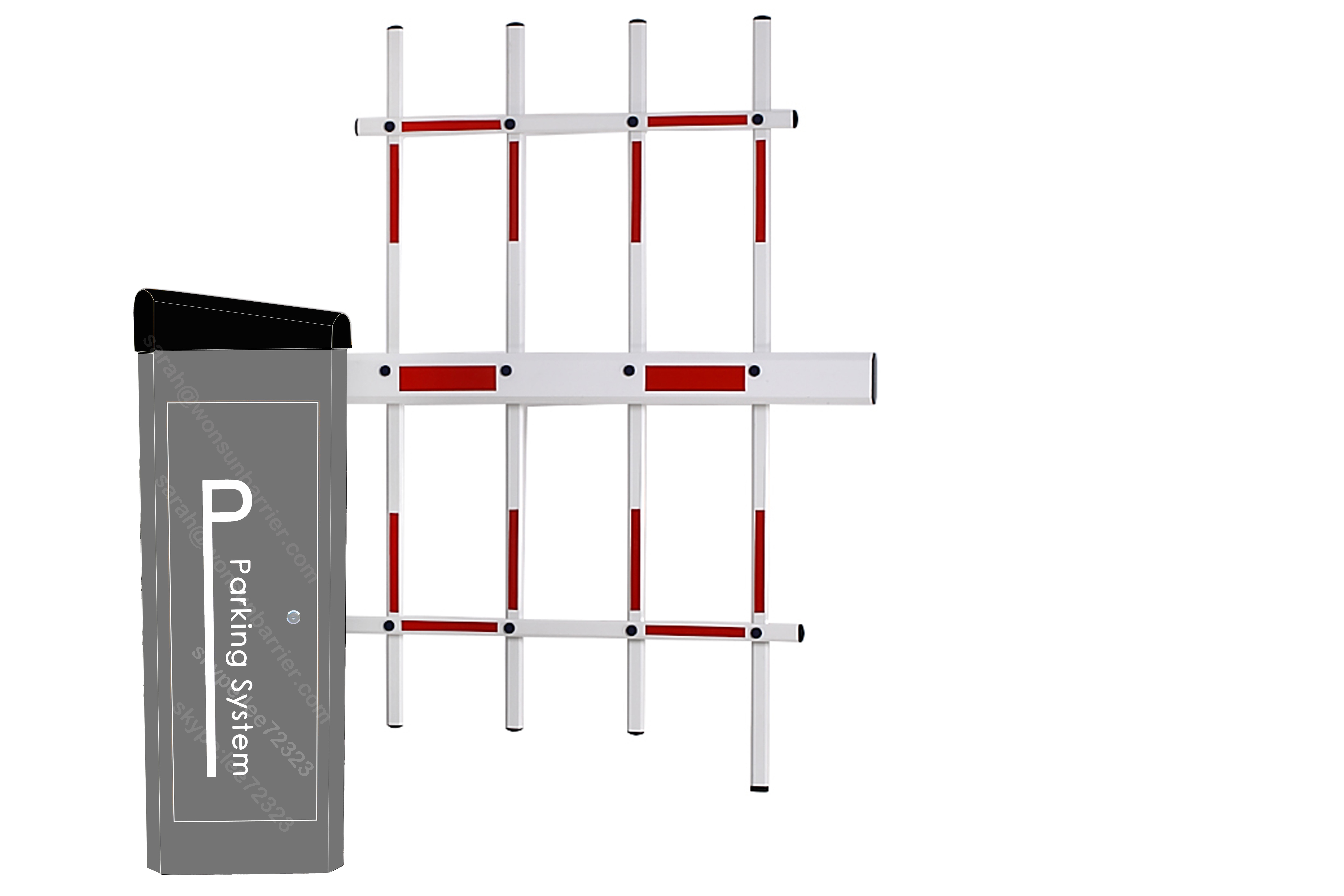

100*45mm 2 fence boom≤3.5 2.5
100*45mm 2 fence boom≤5 6
100*45mm 3 fence boom≤3 3
100*45mm 3 fence boom≤4 6

Packing list:

Title Specification Qty Unit Note
Barrier gate boom 1 Piece
Machine case press board 2 piece For fixing case
Expansion bolt M16X150 4 set For fixing case
Supporting pole 1 piece Optional part
Expansion bolt M8 4 unit For fixing boom
Boom fixed screws M12*70 2 unit
Case Key 2 unit
Balance spring 1 unit For spare usage
Remote controller 2 unit
Machine control 1 unit Optional
Instruction 1 piece

High Speed 100% Duty Cycle Toll Parking Lot Security Gates With Auto Reverse

Service Item

1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition of complying with the operating instruction, without the unauthorized maintenance of the parts and the machine have no obvious mechanical damage, we will provide a quality assurance for the barrier gate product from the date of use for a period of two years or from the date of shipment up to three years including all mechanical and electronic components other than special consumables.

2.Lifetime charged servicing is offered.

3.Technology servicing is supplied.

*The following situations are charged for servicing (or replacement):

1.Broken by wrong installation;

2.Broken by improper voltage;

3.The surfaces of the system destroyed by wrong installation or use.

4.Broken by natural disaster.

5.Overdue.

6.Servicing items out of the promises.

Service for free:

1. Two year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed

requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.
