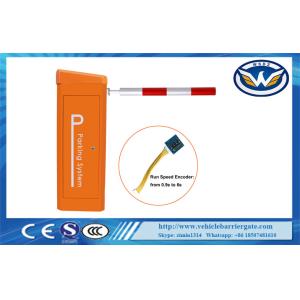

2 Years Warranty Solar Power Battery 24V DC Motor Automatic Barrier Gate
Technical Parameter List:
| DZ-138 barrier gate | V06T | V09T |
| Max Boom Length and Diameter | 2500mm, Ф75mm | 3000mm, Ф75mm |
| Open/Close Time | 0.6sec | 0.9sec,2.5sec,4.5sec |
| Power Supply | 24/100/240VAC,50/60Hz | 24/100/240VAC,50/60Hz |
| Power Consumption | max.150W | 100w |
| Machine Case | Varnished 2.0mm steel plate | Varnished 2.0mm steel plate |
| Machine Case Size(W*D*H) | 342*312*959mm | 342*312*959mm |
| Net Weight | 43kg | 42.6kg |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Driving Method | Servo motor | Servo motor |
| Protection System(IP) | 54 | 54 |
| Insulation Class | F | F |
| Relative Humidity | ≤90% | ≤90% |
| Motor Speed | 3000r/min | 3000r/min |
| Remote Control Distance | ≤100m (open, sunny weather) | ≤100m (open, sunny weather) |
| Output Torque | 1.2N.M*140=160N.M | 0.86N.M*140=120N.M |
| Running Noise＜ | 45dB | 45dB |
| Surface Treatment | Outdoor metal powder electrostatic spraying | Outdoor metal powder electrostatic spraying |
| DZ Controller | | |
| Voltage(±10%) | 100-240 volt | 100-240 volt |
| Frequency(Hz) | 50-60 | 50-60 |
| Max Power Consumption(watt) | 8 | 8 |
| Fuse | F5AH | F5AH |
| Control Voltage | 24V DC/max.3000mA | 24V DC/max.3000mA |
| Input-end Number | 8 | 8 |
| Open Collector Output Number | 2 | 2 |
| Zero Level Reversal Relay Number | 3 | 3 |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Protection System(IP) | 20 | 20 |
| Weight(gram) | 450gram | 450gram |
| Dimension mm(L-W-H) | | 158*126*55 |
Automatic Barrier Gate Functions& Features:
1: Arm will automatically open when power off, no clutch design
When power on, barrier will automatically reset, restore to close state. If you have special need that manual intervention, it can
be set up easily, you can gently rotate poles to manual Open / close boom without open the housing by using adjust the control board
2: a variety of input and output modes can be selected, often open and close can be selected.
3: rod angle can be adjusted from 55~90 degrees, 10 degree resolution.
4: Speed can be adjusted, 0.9s to 6s
5:all kinds of state signal output.
6: barrier gate running state OK signal output.
7: alarm signal output.
8: traffic lights signal relay output.
9: external Vehicle detection signal, infrared sensor signal.
10: AC90V~AC264V50/60Hz, the global universal voltage standard. Also available
24V battery power supply.(No mains place to pick up solar energy,wind energy to recharge battery)
11: the running noise is less than 60dB.
12: Power consumption: 50W, maximum power 100W.
13:It is also a simple matter to change the handing on-site from right-Hand to left-Hand.
14: automatically detect whether the balance spring fatigue or damage, if the spring
fatigue tips to adjust, if you can not adjust the spring, replace the spring is very easy,
no need to use tools, hand can be replaced.
15: remote control open / close and car park system control open / close, separate
input, respectively, the number of corresponding statistics.
16: Inbuilt RS485 connected to PC of the parking system.
Machine Core Components:
