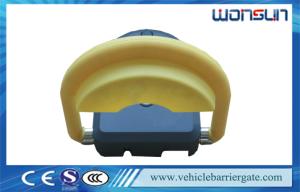

Heavy Duty Automatic Car Parking Locks System For Parking Lot With Remote Controller
Quick Detail:
1. Name: Car Parking Locks
2. Protection Grade: IP68
3. Application: Parking System
4. Standard Voltage: DC12V
5. Operational Current: 0.4A
6. Certificate: CE, ISO, SGS
7. Net Weight: 8KG
8. Up to Down Time: 4-6s
Applications:
User Scope of products: car owners property management company Property Management Office parking local production house developers Automobile Dealers auto shop security companies, security shop
Description:
1. Energy-saving; the battery is a best product in China
2. Safe: the power connection is anti-disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy.
3. Nosie-free:Bearing tranmission design of the motor makes almost zero noise. it is beneficial for battery and motor longevity and lesser friction
4. Hermetic: the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.
5. Auto-repositioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.
6. Using The United States Champion brand battery, with resistant shock, resistant high temperature, small size, good charge and discharge performance characteristics, theorily can be recharged 5000 times. Most energy-using efficient design patterns to achieve the industry's lowest operating current host 0.4A, starting current 0.6A ~ 0.7A, standby current of 0.6mA, thus ensuring once charging using at least once a year.
6. Easy stallation:Four expansion screws, using internal security design, and the installation location of the host expansion screws inside the shell, only with a key to open the back cover before installation, eliminating the theft risks when parking lock installed outdoors
7. Durable: the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.
Specifications
| Model | WSTS105 |
| Standard Voltage | DC12V |
| Battery Voltage | DC12V, 7Ah |
| Protection Grade | IP68 |
| Extended Height | 340MM |
| Dimension | 357*370*82.5MM |
| Current | 0.4A |
| Max Bearing Weight | 5 t |
| Net weight | 9kgs |
| Running Time | 4-6S |
| Remote control distance | ≥30m |
| Working Temperature | -35℃～+55℃ |
